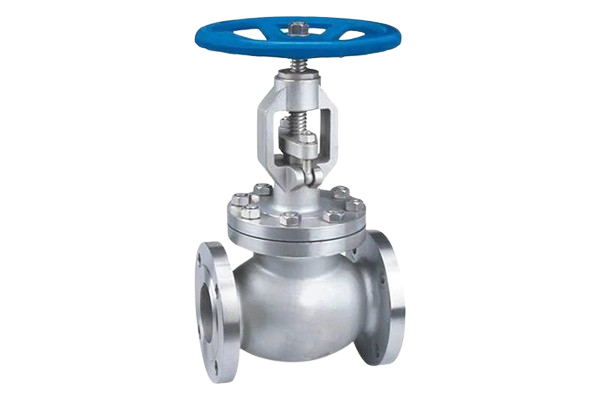

Globe Valve

Globe Valve

Globe Valves are linear-motion valves designed for reliable throttling, flow regulation, and positive shut-off in industrial piping systems. The valve controls flow by moving a disc perpendicular to the valve seat, allowing accurate regulation of the flow area and providing dependable shut-off performance.

The body incorporates a streamlined internal passage with the seat and disc arranged to provide controlled flow characteristics. Globe Valves can be supplied with different trim configurations depending on the required flow coefficient (Cv), pressure drop, temperature, and service conditions.

• BODY BONNET CONNECTION
  Bolted Bonnet Design from Class 150 to 600, Pressure Seal Deign for Class 900 & Above

• SEAT FACES
  Seat faces lapped for smooth finish and superior sealing. Optional renewable threaded seat or welded seats are as per customer specification.
• BACK SEAT
  All our globe valves have back seat design, carbon steel valves is fitted with removable back seat. For stainless steel integral machined with bonnet.
• GASKET
  Stainless steel + flexible graphite spiral wounded gasket is used for 150 to 600 class, ring joint gasket is also optional for class 600 valves, for class 900 and above pressurized seal design is used.
