Gate Valve
Robust wedge-type design providing reliable isolation with minimal pressure drop in fully open position. Suitable for water, oil & gas, chemical, petrochemical, power, and general industrial applications.
Product Description
Gate Valve
Gate Valves are designed for reliable isolation and shut-off of fluid flow in industrial piping systems. The valve operates by raising or lowering a gate between the seats, providing a full and unobstructed flow passage when fully open with minimal pressure drop.
Our Gate Valves are manufactured for dependable performance, robust operation, and long service life across a wide range of industrial applications.
Key Features:
- Full-bore flow passage with low pressure drop
- Reliable isolation and shut-off
- Robust and durable construction
- Suitable for high-pressure and high-temperature applications
- Available with rising or non-rising stem designs
- Available in various sizes, pressure classes, and material options
- Suitable for manual or automated operation
- Easy maintenance and long service life
- Suitable for a wide range of industrial fluids
Applications: Oil & Gas, Refineries, Chemical & Petrochemical, Power Generation, Water & Wastewater, Process Industries, Mining, HVAC, and General Industrial Services.
.rtl .e-con-inner>
TECHNICAL DATA
| Bolted Bonnet Gate Valve | API 600 |
| Forged Steel Gate Valve | API 602 |
| Pressure Seal Gate Valve | ASME B 16.34 / API 600 |
| End to End Dimensions | ASME B 16.10 |
| Flanged End Dimensions | ASME B 16.5 |
| Butt Weld End Dimensions | ASME B 16.25 |
| Socket Weld End Dimensions | ASME B 16.11 |
| Valve Inspection & Testing | API 598 / BS 6755 Part-I |
| PRODUCT RANGE | SIZE | PRESSURE CLASS |
| Bolted Bonnet Gate Valve | 15 NB to 900 NB | 150# to 600# |
| Forged Steel Gate Valve | 6 NB to 50 NB | 800# to 2500# |
| Pressure Seal Gate Valve | 50 NB to 600 NB | 900# to 2500# |
Lets Get Quotation

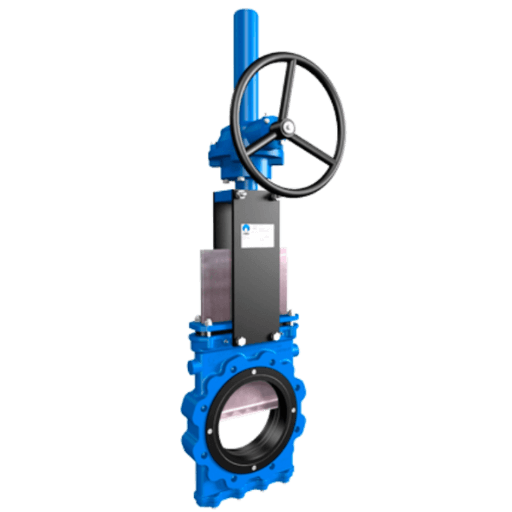

Knife Gate Valve
Heavy-duty design with a sharp-edged gate for reliable shut-off in pipelines handling slurry, powders,…
View details →

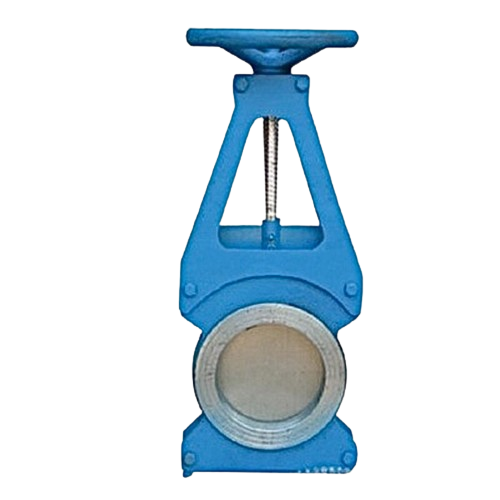

Pulp Valve
Heavy-duty valve designed for reliable flow control and shut-off of pulp, slurry, and abrasive…
View details →

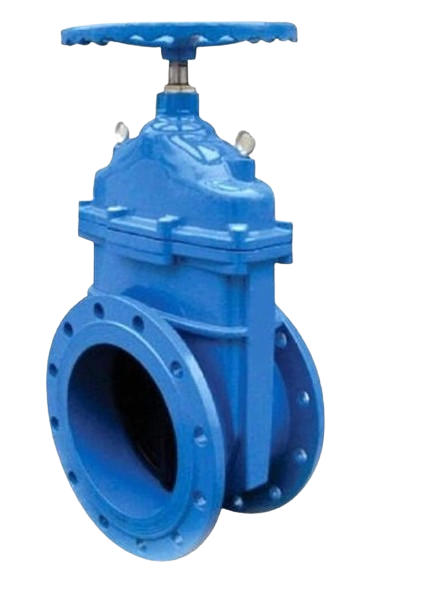

Sluice Valve
